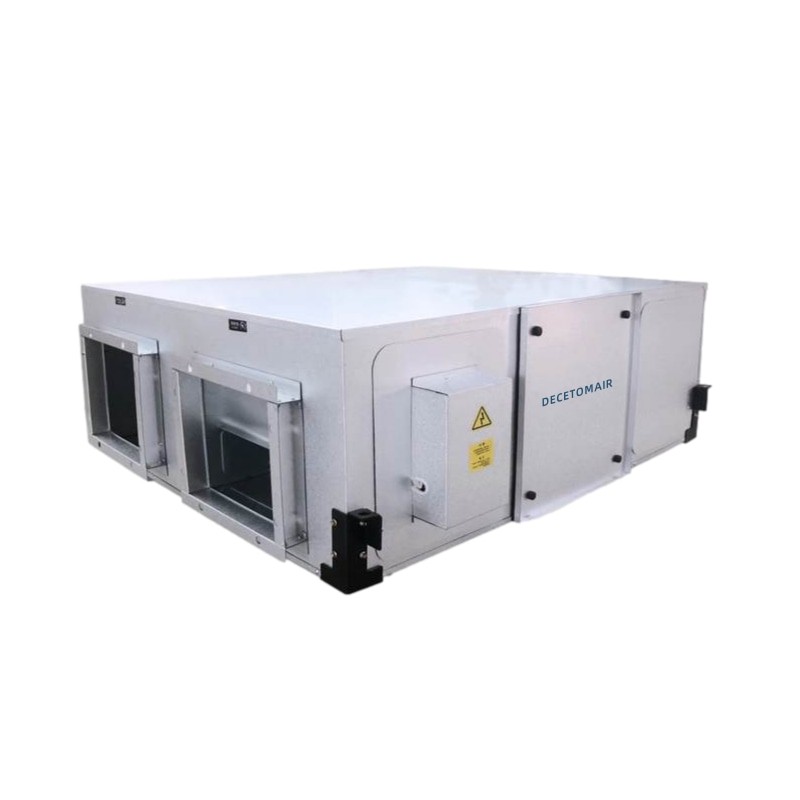

CASING
Steel casing is covered with high-quality multilayer aluminum and zinc alloy to prevent corrosion within energy recovery ventilation unit. Equipment side access door opens with terminal blocks for connecting power and controller.
FILTER
The Enthalpic core is equipped with one primary filter on both sides to prevent dust contamination
FANS
High efficient electronically commutated motors with external motor and impeller with forward curved blades. AC motors are featured with high performance and total speed controllable range. The electric motors and impellers are dynamically balanced.
ENERGY RECOVERY CORE
Enthalpic core provides both heat & humidity recovery. For enthalpic core no drain required. Enthalpy cores are antimicrobial and provide up to 10+ years of use.
THE ENERGY RECOVERY
EFFICIENCY OF HEAT EXCHANGE CORE IS HIGH
| Function in winter | Features in summer
|
Formula for heat exchange
Winter：indoorairtemperature=
(indoor temperature-outdoor temperature) X
heat exchange efficiency+outdoor temperature EXAMPLE：(20℃-0℃)×70%+0℃=14℃ | Formula for heat exchange
Summer：indoorairtemperature=
(indoor temperature-outdoor temperature) X
heat exchange efficiency+outdoor temperature
EXAMPLE：35℃-(35℃-26℃)×70%=28.7℃
|
CONTROL BOARD
Can be adapted to three-speed rotary switch or LCD controller.
SUITABLE FOR
Office / factory / supermarket / mall / hotel / hospital / gymnasium / opera
We accept custom orders with special requirements for special places.
Product Parameters
| Model | Air volume | Power | Rated power | Maximum static pressure | Heat exchange rate | Noise | Exterior dimension | Tuyere |
| (m³/h) | (V/Hz) | (W) | (Pa) | (%) | dB(A) | (mm) | (mm) |
| AQR-2500DS | 2500 | 220/50 | 990 | 410 | 73 | 45 | 1300X1090X455 | 230X260 |
| AQR-3000DS | 3000 | 220/50 | 1100 | 420 | 73 | 50 | 1300X1090X455 | 300X260 |
| AQR-4000DS | 4000 | 220/50 | 1500 | 445 | 73 | 55 | 1460X1190X505 | 330X300 |
| AQR-5000DS | 5000 | 380/50 | 2000 | 455 | 73 | 58 | 1460X1420X505 | 360X310 |
